High Level Bridge Inspection

Primary Service

• Structural Engineering

Client

• Summit County Engineer

Location

• Akron

Tasks Performed

• Bridge Inspection

Project Description

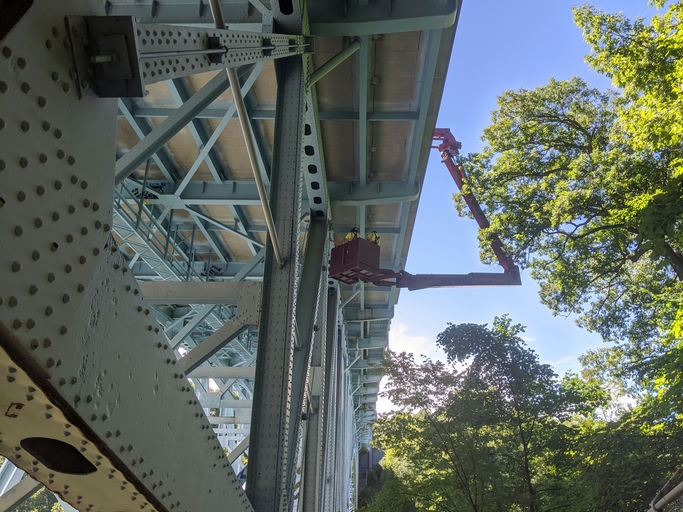

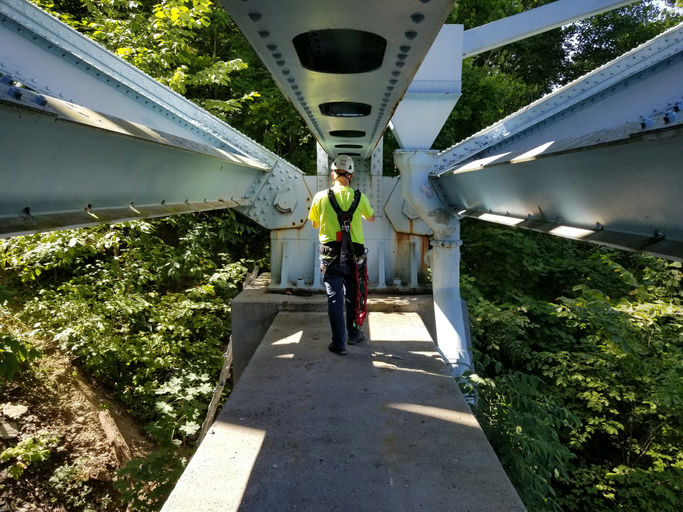

Euthenics performed routine and fracture critical inspections of the Akron North Main Street (High Level) Bridge over the Cuyahoga River from 2017 through 2020. The 900 foot cantilevered Pratt deck truss structure consists of two 210 foot anchor spans and one 480 foot main span. All fracture critical members were inspected at arm’s reach and routine inspections completed for non-fracture critical members. Field measurements of gusset plates and floor beams were taken to determine section loss and prepare the condition and recommendation reports. Inspection Reports were prepared with future structure type design alternatives and submitted to Summit County for use in planning and obtaining funding to replace the bridge when funding becomes available. The inspection process utilized a snooper truck, ladders and climbing equipment with fall protection.
